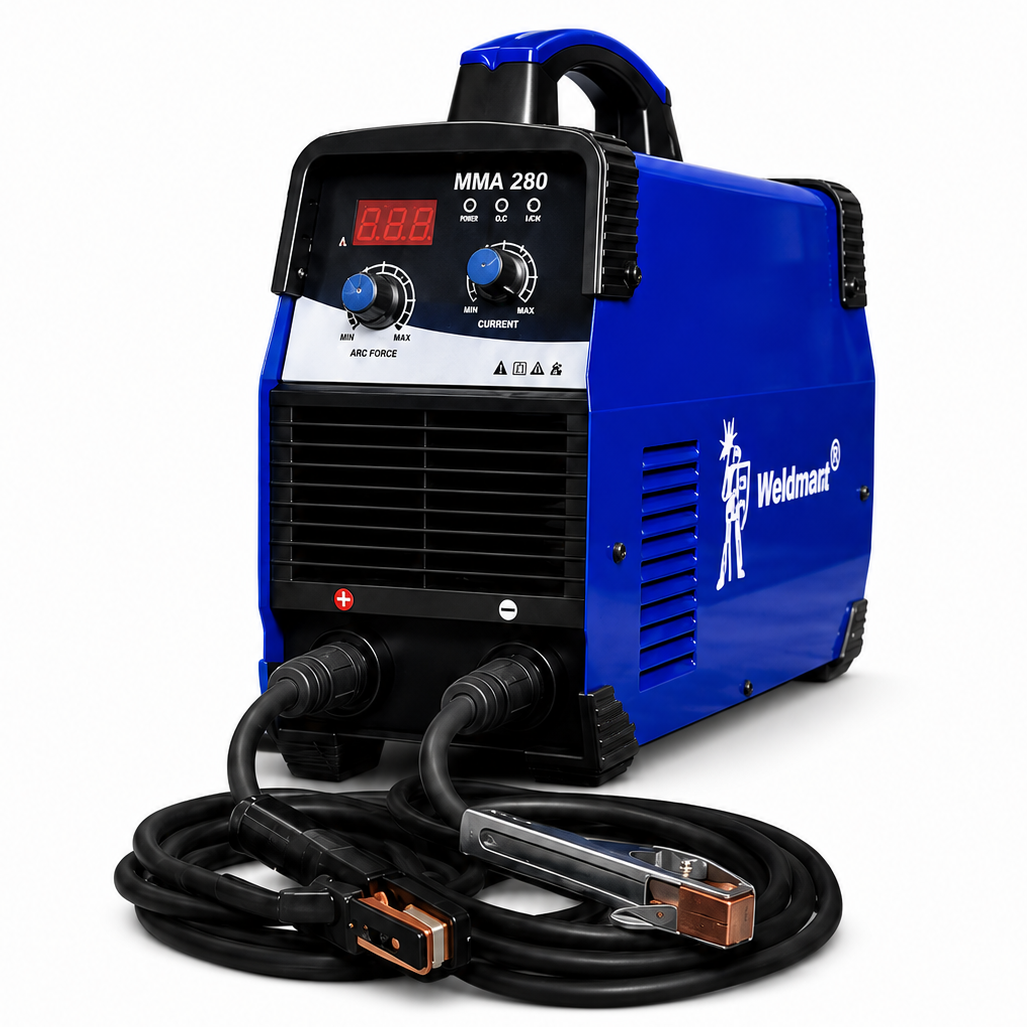

S. M. Equipment MMA 280 is an IGBT Inverter Welding Machine used for Arc Welding (Manual Metal Arc Welding). It uses electrodes to join two metal parts by melting the electrode and base metal to form a strong and durable weld. Strong welds and smooth performance make it perfect for professionals and fabricators.
Built with IGBT inverter technology, the MMA 280 delivers high efficiency and energy saving, a stable arc with less spatter, and smooth welding on all types of electrodes from 1.6 mm to 5.0 mm. Hot start, arc force and anti stick functions make striking and holding the arc easy, while over current and over voltage protection keep the machine and operator safe. At only about 7 kg, it is compact, portable and easy to carry to any site.
Key Features
- IGBT inverter technology
- High efficiency and energy saving (85% efficiency)
- Stable arc, less spatter
- Hot start, arc force, anti stick
- Over current and over voltage protection
- Compact design, easy to carry
- Suitable for all types of electrodes
- Forced air cooling
How Does It Work?
1. Connect: Connect the earth clamp to the workpiece and the electrode holder to the machine.
2. Power On: Switch on the machine and set the required current as per the electrode size.
3. Weld: Strike the arc by touching the electrode on the metal surface and start welding.
4. Strong Joint: Get a strong, clean and high quality weld with stable arc and minimum spatter.
Specifications
Model: MMA 280
Input Voltage: 220V / 380V AC +/-15%
Input Phase: Single Phase / Double Phase
Frequency: 50 / 60 Hz
Input Current: 220V: 60A | 380V: 35A
No Load Voltage: 65 - 80 V
Output Current Range: 20 - 280 A
Duty Cycle: 60% @ 280A
Efficiency: 85%
Power Factor: 0.93
Insulation Class: H
Protection Class: IP21S
Cooling: Forced Air
Weight: 7.0 Kg (Approx.)
Dimensions (L x W x H): 385 x 155 x 280 mm
Applicable Electrodes: 1.6 - 5.0 mm
Recommended Electrode Size
1.6 mm: 20 - 50 A
2.0 mm: 40 - 80 A
2.5 mm: 60 - 120 A
3.2 mm: 90 - 180 A
4.0 mm: 130 - 220 A
5.0 mm: 160 - 280 A
Standard Accessories
- Welding cable with holder - 1 No.
- Earth cable with clamp - 1 No.
- Shoulder strap - 1 No.
- User manual - 1 No.
Available All Over India
S. M. Equipment supplies the MMA 280 IGBT Inverter Welding Machine to customers across India, including Gujarat, Maharashtra, Rajasthan, Madhya Pradesh, Delhi NCR, Uttar Pradesh, Karnataka, Tamil Nadu and all other states, with safe delivery and after-sales support.
Call or WhatsApp us today for the best price and quick delivery.
S. M. Equipment - We Provide Solutions in Construction Machinery & Powertools
Phone / WhatsApp: 9724075896, 6355583401, 9328621124
Email: smequipment18@gmail.com
Website: smequipment.in
Address: Shop No. 6, Hyatt Residency, Near Al-Madina, New Tandalia 24 Mtr Main Road, Tandalia, Vadodara - 390012, Gujarat, India
